無塵自動循環回收噴砂機系列

◆食品優勢特點 Product features（請從上到下搜素多大量裝修案例照片集供決定性）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產加工廢氣焊接煙塵爆炸環衛標準規范。砂料、焊接煙塵爆炸自己回收分類處理、拆分、循環法施用，作業答案現場好無焊接煙塵爆炸危害。機低能耗設計方案，在很大程度上改進了作業答案人員的勞動者密度和作業答案氛圍可配反吹風設施，可手動去除濾清器污垢。內置式分水過濾機系統器。可對壓縮成環境通過再次油和水剝離。手動放料，將吸砂頭加上砂料中，重新啟動真空度泵機系統將手動放料。PLC可程序設計把控（配置），料位警報功能表(標配)。擁有調壓旋紐、除塵器原理旋鈕。固定的氣控系統設計與磨料磨具閥。事業圓弧20-70米，外表面工作檔次達Sa2.5-3級。選配防護防潮交流供電供電插座按鈕開關插座按鈕開關，省事進行。選配調控交流供電飛機供電插座按鈕開關插座按鈕開關省事進行。的難忘顏值的防灰調控表面板與電氣控制系統箱。維保與檢修保養尤其省事。車式柜體構造，防雨布防灰，移動手機省事。柜體門邊用到快捷方便快捷門瑣連接起來，拆解省事。手將按鈕開關調控（電氣控制系統DC24V）。一機三用，包括開放式、工業制造吸砂器、環保標準型六種生產設備的能力。噴砂設備主機應用唯一性操控管路，工作上壓為在0.2Kpa-0.8Kpa規模內指定可以調節，可滿足了不一樣產品的噴砂的工藝讓。用規模：防銹處理、除車漆、焊接縫隙處理（還有不銹鋼管裝飾管焊接縫基本身邊的去黑、去焊渣處里）去毛刺發生、飛邊、脫色皮、不銹鋼管裝飾管，鋁型材外觀的淡雅型亞光處里（耐污性很不錯、可蓋住割傷）、去混疑土、石雕外觀污圬等處里。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要的技能數據 Main technical parameters

機械規格 Model	STR-B型無塵自動循環回收式噴砂機
運轉供電 Work power	380V 50HZ
的空氣學習壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
電機馬達最大功率 Motor power	4kw
辦公利用率 Work efficiency	6-10m2
作業表面積 Work radius	10m 可通過所需改長，大概咨詢公司客戶服務熱線
工作的結構 Work form	電腦自動不斷循環再利用Automatic cycle recovery
去除等級分 Clean level	Sa2-3
粗糟度 Roughness	60μm作用
重量體積 Weight	260kg
外觀設計的尺寸 Shape dimension	1380×830×1700mm
砂料金橋銅業跨接線的截面積大小 Sand material specifications	20-100#上面的（1.0mm-0.04mm）

◆適宜規模 Applicable scope

1.環保健康想要高且無什么布袋除塵環保設備的領域；

2.除理品級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

用到標準：除銹處理、除漆料焊道治理去毛刺發生、飛邊、空氣氧化皮不銹鋼板、型材的表面的典雅型亞光治療（耐污性最號、可遮住劃破）去混泥土土、石雕漆層污圬等治療。

（實際數據資料可參照A型或轉達我公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 品牌結構特征 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已縮減，原因也是簡單非常方便野外安裝運動簡單非常方便，極大程度上的減低了勞動力剛度，如果處里能力在內部之類型車輛快捷方便；能夠各位雇主的保持一致認可的，并都能夠了廣泛應用的營銷和運行！（中應內容可符合A型或轉達我我司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

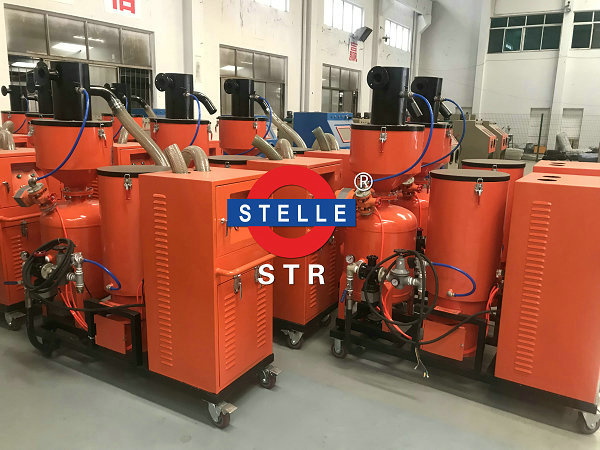

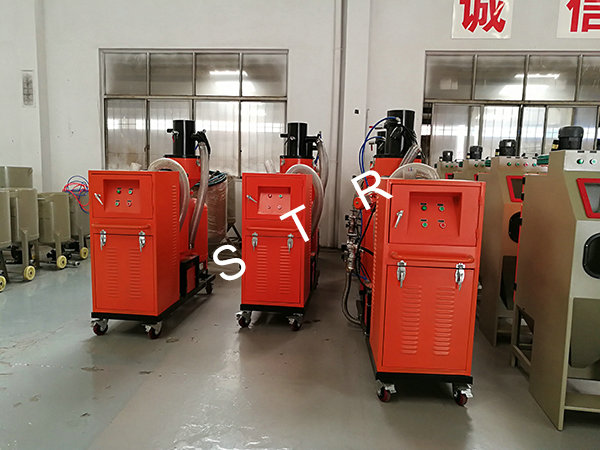

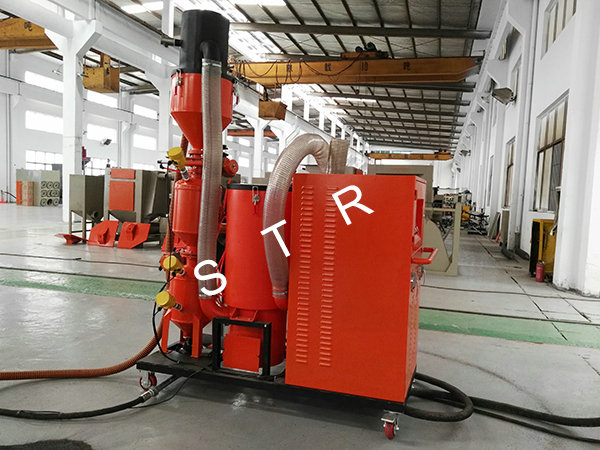

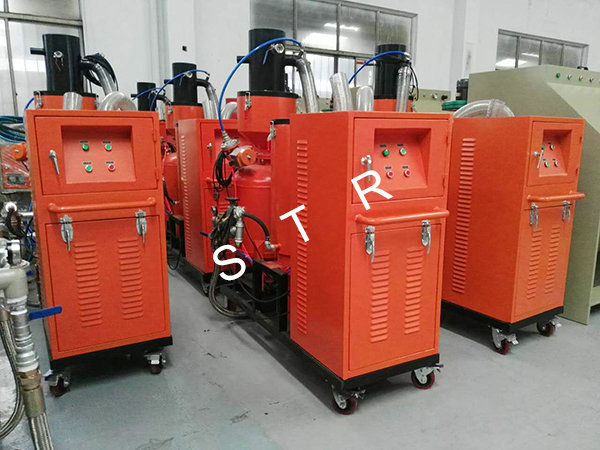

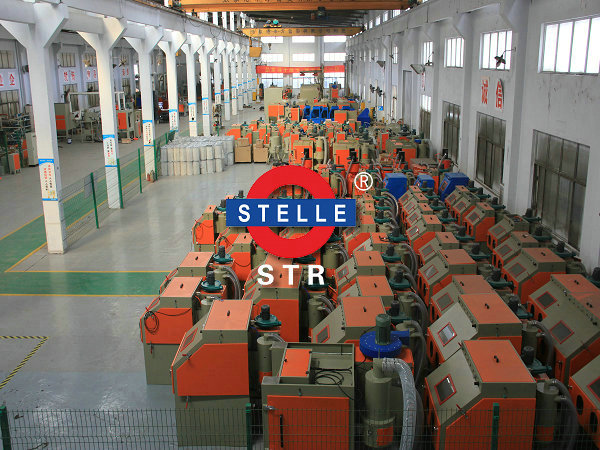

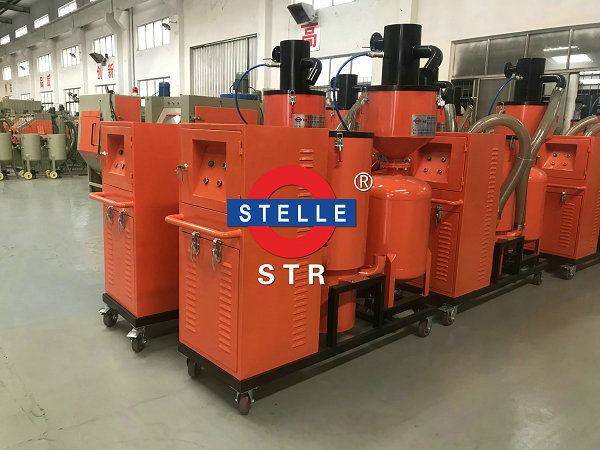

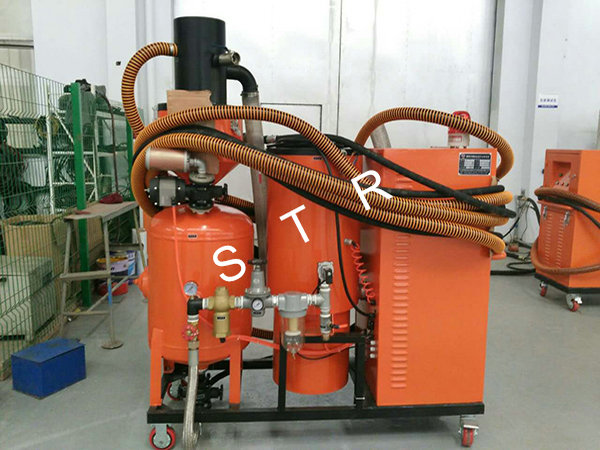

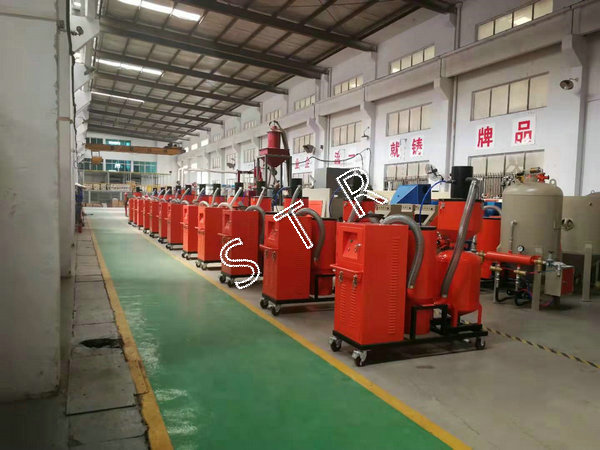

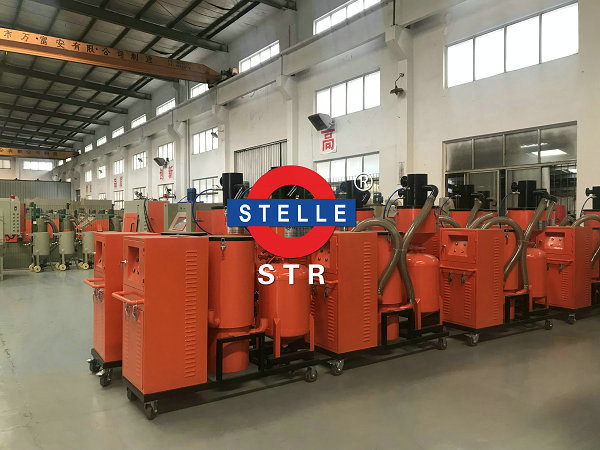

部份無塵自動循環環保型噴砂機案例:
