◆車輛的特點 Product features
1. 來設計新鮮,外觀顏值,健康體驗好;
2. 調節器式颶風拆分法器,能將適用耐磨材料與細小煤塵拆分法,好的耐磨材料不斷選用;
3. 最主要的零機件選用高品質國外零件及運轉情況,選用年限長;
4. 激光加工零部件表面能不規則;
5. 多工作臺面方案;作業員可同時作業噴砂。選擇投資者標準,能選擇人工操作或系統自動 ;可按合作方特殊要求訂作!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆適宜比率 Applicable scope
鋼板,手機塑料殼,音響喇叭開關面板,三文治烤盤等垂直面及方體部件的噴砂處理。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆一般水平性能指標 Main technical parameters
機器設備技術參數 Model |

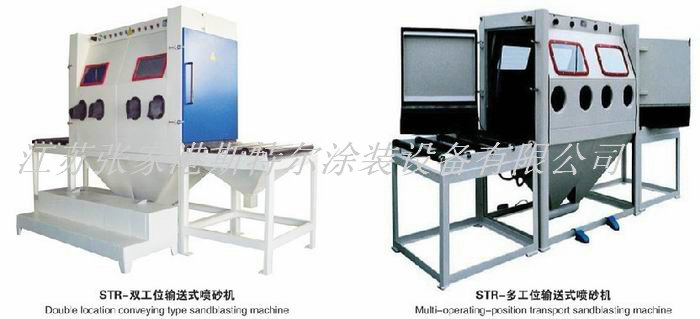

STR-多工位輸送式噴砂機 |
設備長寬 Complete machine size(mm) |
3000×1000×1700 |
工作中空間 Work space(mm) |
2000×1000×800 |
外卸料尺寸 Conveying the size(mm) |
500×1000×1000(2件) |
收塵箱外形尺寸 Dedust box sizes(mm) |
600×600×1800 |
分開器變頻電動機 Separator motor |
220V 50HZ 550W |
溶合器風速 Separator air volume |
8.5m3/min |
縮減氣源 Compressed air source |
2-8bar(kg/cm2) |
噴槍 Spray gun |
2把 |
照明 Floodlight |
兩盞30W防爆設備燈 |
產品容量 Machine weight |
550kg |
