沸水器內膽噴砂加工線

The water heater tank sandblasting production line

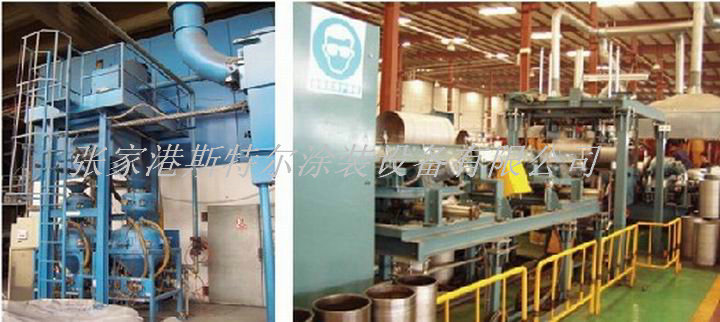

熱水器內膽噴砂生產線是一種電熱水器內膽噴砂機，由工件輸送系統、噴砂箱體、噴砂系統、磨料回收系統、除塵系統、噴槍運動機構、鋼瓶定位旋轉機構、控制系統及空壓設備等部分組成。該實用新型結構自動化程度高，采用一次處理使鋼瓶內壁清理更徹底，可連續添加磨料使得生產效率大大提高。使用雙缸連續加砂噴砂主機。

特點：依次由工件輸送系統、噴砂箱體、噴砂系統、磨料回收系統、除塵系統、噴槍運動機構、鋼瓶定位旋轉機構、控制系統及空壓設備組成；工件輸送系統采用封閉軌積放式懸掛輸送鏈，由主輸送線路和分支線路組成，包含承載小車和牽引鏈條，牽引鏈條上的推頭推動承載小車運行，牽引鏈條和承載小車都有各自的運行軌道；噴砂箱體為一通過式密閉空間，骨架為型鋼，鋼板做墻壁，內墻四周貼橡膠，箱體兩側各設一個全自動氣動門，頂部開槽，頂部槽口有橡膠密封結構，箱體一側設置四個玻璃觀察窗，另一側布置兩個吸塵口，噴砂箱的底部做成錐斗形的集砂斗；噴砂系統由噴砂機、噴砂管、噴嘴組成，噴砂機是具有三個噴嘴的全自動連續加砂噴砂機，分工作艙和磨料補給艙兩個艙室，分別裝有一個物位控制器，對磨料進行探測，噴嘴的材質為硬質合金；磨料回收系統由磨料循環輸送裝置、磨料凈化裝置組成，磨料循環輸送裝置由水平輸送裝置和垂直提升裝置兩部分組成，水平輸送裝置將箱內的磨料輸送至垂直提升裝置，再由垂直提升裝置垂直輸送到磨料凈化裝置，磨料凈化裝置為簾幕式分離器，該系統與除塵系統相連；通風除塵系統由風管、流量調節閥、離心風機、高效沉流濾筒除塵器組成，離心風機是整個系統粉塵輸送的動力源；噴槍運動機構由電機、減速器、行走小車及傳動機構組成，電機可在限速1.5ｍ／ｍin下變頻調壓，發直流無刷電機的起到噴槍桿做垂雙曲線雙曲線田徑運行；設備選轉構造由發直流無刷電機的及降速器、轉動構造及膠輪成分，發直流無刷電機的起到膠輪選轉，膠輪使用滾動滑動摩擦力起到設備做轉回田徑運行；設備分析構造由分析節流閥、分析輪及托架成分，使設備瓶口朝下，瓶口基地站擺正噴槍基地站，使噴槍還可以快速步入設備內；設備裝卸構造由吊鉤及托架成分，施工人員在腔體外裝卸好的設備由架設傳送管鏈傳送管進腔體內分析后進行噴砂工作；操控設計由電子控制模式設計主氣控設計成分，電子控制模式設計選用觸碰屏式的電腦頁面加PLC的把握方法對各產品做好把握，氣控設備把握油路分配器pcb板完全自動式運作。

The water heater tank gush arenaceous production line is a kind of electric water heater tank sandblasting machine, by the conveying system, gush arenaceous enclosure, gush arenaceous system, abrasive, recovery system, dust removal system, gun movement mechanism, the cylinder positioning rotating mechanism, control system and air pressure equipment components. The utility model structure a high degree of automation, using a cylinder wall cleaning process more thoroughly, can add abrasive make continuous production efficiency is greatly increased. Use advanced continuous sand-up urn sandblasting host,

Features: the workpiece in conveying system, gush arenaceous enclosure, gush arenaceous system, abrasive, recovery system, dust removal system, gun movement mechanism, the cylinder positioning rotating mechanism, control system and air pressure equipment composition; The conveying system using closed rail product put suspension conveyor chain, by the transportation lines and branch circuitry, including cars and traction chain, bearing traction on the chain operation, carrying the car to promote pusher traction chain and carrying the car has its own orbit; Gush arenaceous cabinet for a through the type an airtight room, for steel, steel skeleton make wall, interior stick around, the rubber on each side of a fully automatic pneumatic door set, the top slot, the top slot rubber seal structure, the cabinet has set up four side glass Windows, another side decorate two aspiration mouth, gush arenaceous box at the bottom of the cone shape made a collection of sand scuttle; Gush arenaceous system consists of sandblasting machine, gush arenaceous tube, nozzle composition, sandblasting machine is to have three the nozzle of the automatic continuous sand-up sandblasting machine, job tanks and abrasive supply tank two cabin, respectively is equipped with a material level controller to explore, abrasive, the nozzle of the material of hard alloy; Abrasive recovery system by conveying equipment, abrasive, abrasive circulation purification device component, abrasive circulation conveyor consists of conveying equipment and vertical level ascension device of two parts, the level of the abrasive conveying equipment will be transported to the vertical ascension device, again by vertical conveyor to improve device vertical abrasive, abrasive purification equipment purification equipment for the curtain type separator, the system and dust removal system connected; Ventilation dust removal system by duct, flow regulator, centrifugal fan, efficient flow of dust filter canister sink, centrifugal fan is the whole system conveying the power source of the dust; Gun by motor sports organizations, reducer, walk the car and drive mechanism composition, motor can be at the highest speed limit 1.5 m/min next stepless speed regulation, motor drive gun stem vertical linear motion; do The cylinder rotating mechanism by motor and reducer, a transmission mechanism and roller, motor drive of rubber wheel rotation, through friction roller drive cylinders do turn movement; Positioning cylinders by positioning cylinders, positioning and stents, make up wheel cylinder bottle down, bottle on the center center, make gun gun to be able smoothly into the cylinder; The cylinder hoisting mechanism consists of a hook and stent, the enclosure of workers outside the lifting cylinder by suspension conveyor chain good transport into the cabinet position after piating; Control system by electronic control system and control system, electronic control system composed by the type of touch screen man-machine interface and PLC control mode to various equipment for the control of air control system control pneumatic components complete automatic action.
