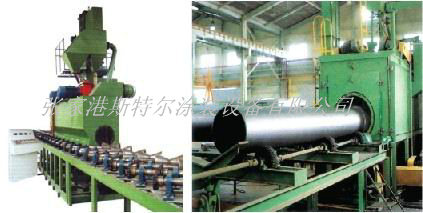

涂塑鋼管里外壁拋噴丸清潔機
◆食品特征 Product features
無縫管壁上拋丸除去機采使用在大、中、全自功無縫管、氣瓶的外壁處置和淬煉、鑄件自功旋轉視頻、自功穿行，鑄件的轉動轉速可依照鑄件的要去立刻調整，可設計構思成單管、雙管、3管、4管、變種后可保養魔幻管道配件、儲油罐，醫藥化工倉儲運輸罐鐵路運輸配送車輛等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆一般技能性能參數 Main technical parameters
|
處理不銹鋼鋼管圖片尺寸 Clean steel pipe size |
Φ300×5000mm |
拋丸器個數 The number of shot peening machie |
2臺 |
|
輥道運轉線速度 Roller speed |
1-5m/min |
拋丸器耗油率 Shot peening machie power |
11kw×2 |
|
彈丸直徑為 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸量 The number of shot peening |
250kg/min×2 |
|
初次彈丸存入量 The first projectile into amount |
800kg |
葉片直徑 Impellerdiameter |
Φ250mm |
|
進(出)料輥道長寬高 Length of material into(out) the roller |
5000mm |
水輪轉數 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射極限速度 Aerosol propellant speed |
60-70m/s |
|
具備體積 Load weight |
30kg/m |
上升機公率 Hoist machine power |
3kw |
|
擺線緩速機電率 Cycloidal reducer power |
2.2kw |
提拔量 Ascension of |
30/h |
|
脫水布袋條數 The number of filter bag |
36條 |
分離出來量 Separation of |
30t/h |
|
濾水布袋產品規格 Specification of filter bag |
Φ120×5000mm |
雙向錐形耗油率Longitudinal spiral power |
3kw |
|
處理新風量 Processing air volume |
9800m3/h |
運輸量 Throughput |
30t/h |
|
凈化排煙風機最大功率 Dust electromotor power |
5.5kw |
總輸出 Total power |
37kw影響 |
|
振打變頻電動機工作效率 Vibration motor power |
0.75kw |
機器設備外觀規格 Shape dimension |
15000×4600×5000mm |
